Matrix

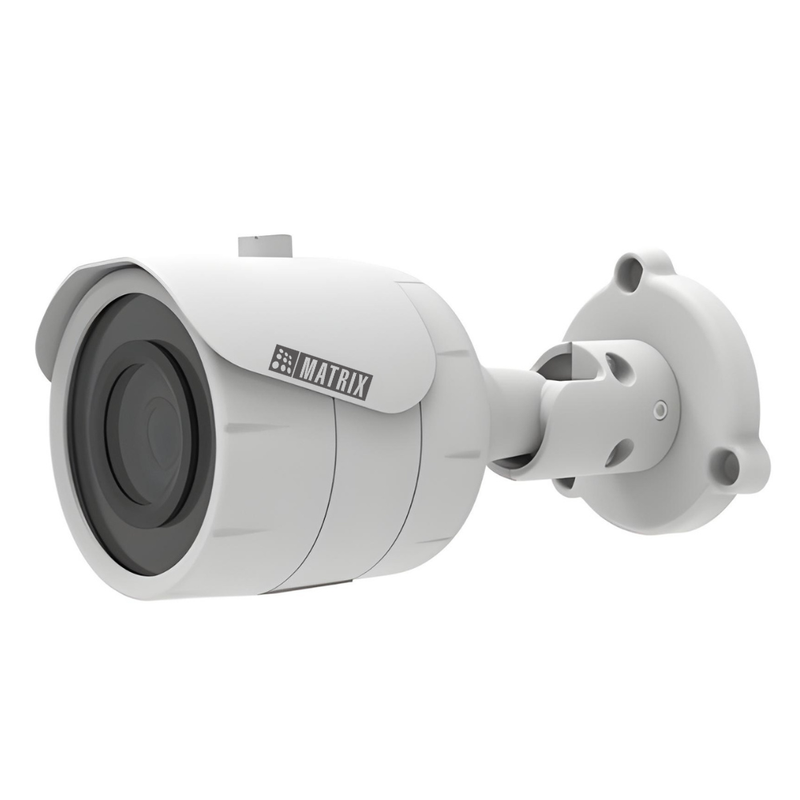

Matrix SATATYA 8MP Fixed Lens IR Bullet Camera With Audio- Professional Series 6.0mm
SKU: SATATYA MIBR80FL60CWP
Select required product from options below:
Lens: 6.0mm
About Product
The Matrix Professional Series 8MP IR Bullet Camera delivers crystal-clear video, audio capture and intelligent monitoring with Sony STARVIS CMOS sensors and 120 dB True WDR for superior performance in low light and high-contrast conditions. Available in 2.8mm (106.9° FoV), 3.6mm (84° FoV) and 6mm (51.26° FoV) lenses, it offers flexible coverage for wide areas, balanced views or long-range surveillance.
With IR night vision up to 30m, built-in audio, 512 GB edge storage and smart analytics like Motion Detection, Intrusion Detection and TripWire, it ensures reliable, round-the-clock protection. Compact and durable (155mm x 75mm), it’s ideal for both indoor and outdoor business security needs.
Key Specs
- Lux: Color - 0.01 Lux @F1.2 (AGC ON) Monochrome - 0 Lux
- IR Range: Up to 30m
- Lens type: 6.0mm Fixed Lens
- Resolution: 3840 x 2160
- Camera Type: 8MP Bullet
- Alarm Trigger: Yes
- Max Resolution: 3840 x 2160
- Video Analytics: Motion/No Motion Detection, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion, Audio Exception
- Image Enhancement: Saturation/ Contrast/ Sharpness/ Brightness/ Auto Exposure/ HVS – Forensics/ Smart IR
- Wide Dynamic Range: True WDR (120dB)
Or
Product Specifications
Camera
Camera Type
8MP Bullet
Resolution
3840 x 2160
Image Sensor
1/2.8" SONY – CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)
Signal System
-
Lux
Color - 0.01 Lux @F1.2 (AGC ON) Monochrome - 0 Lux
Shutter time
1/15s - 1/100000s
Day & Night
Yes
Wide Dynamic Range
True WDR (120dB)
Angle Adjustment
Pan: 0° to 360° Tilt: 0° to 90° Rotate: 0° to 360°
Lens
Lens type
6.0mm Fixed Lens
Lens Mount
M12
Aperture
F 1.6/F2.0
FOV
HFOV – 51.26° VFOV – 28.84° DFOV – 58.74°
Illuminator
IR LED
-
IR Range
Up to 30m
Wavelength
850nm
Compresssion Standard
Video compression
H.265, H.264, MJPEG
Video Bit Rate
128 kbps-16Mbps
Audio compression
G.726 and G.711μ
Audio Bit Rate
-
Max Resolution
3840 x 2160
Main Stream
Profile 1: 4K @30fps (H.265/ H.264)
Sub Stream
Profile 2: D1 @30fps (H.265/H.264)
Image Setting
-
Image Enhancement
Saturation/ Contrast/ Sharpness/ Brightness/ Auto Exposure/ HVS – Forensics/ Smart IR
OSD
-
Privacy Mask
8
Smart Defog
-
Feature
Alarm Trigger
Yes
Video Analytics
Motion/No Motion Detection, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion, Audio Exception
Network
Protocol
TCP/IP, UDP, HTTP, HTTPS, DHCP, DNS, DynDNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, SNMP, FTP, TLS/SSL, SFTP, ICMP, IGMPv2 & v3, ARP, 802.1x, IPv4, IPv6, QoS Layer 3, DSCP, CIFS, SSH, UPnP, Bonjour
System Compatibility
ONVIF(Profile S, G & T)
Remote Connection
-
Client
-
Web Version
Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0
Interface
Communication Interface
10Base-T/100BaseTX Ethernet (RJ-45)
Audio I/O
1x(3.5mm stereo female audio jack)/ 1x(3.5mm stereo female audio jack)
General
Web Client Language
English
Operating Conditions
-30°C to 60°C, Less than 95% RH (non-condensing)
Power Supply
12V (DC); 802.3af (PoE)
Power Consumption
Maximum 8W
Protection
Web login Password Protection, Unused Debug Interface Protection
Dimensions
155 x 75 (Length x Width)
Weight
500gms
